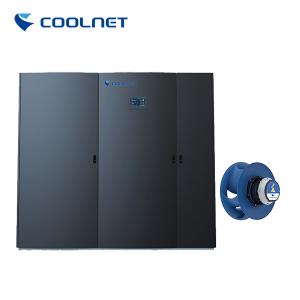

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate

  • 1
  • 2
  • 3

Brand Name : Coolent

Model Number : CYAT76,T80,T100

Certification : ISO/CE

Place of Origin : China

MOQ : 1

Price : to be Negotiated

Payment Terms : T/T

Supply Ability : 1000/Month

Delivery Time : 4W

Packaging Details : WOODEN

Cooling capacity : 70-100KW

Warranty : 1 Year(With no damage in 12 month)

Operating Voltage : 380/400 VAC,230 VAC,220V

Mounting : Floor Standing

Condition : Brand New

Type of AC Air Supply : Chilled water/Air cooled units

After-sales service provided : Engineers available to service machinery overseas

Name : Data Center Precision Air Cooling Units

Refrigerant : R22(R407C/R410A)

Application : Computer Room/Printing Factory/Restaurant/Offfice/Kindergarten,Industrial,Heat recovery,adjust cold/heat/humidity

Color : Black/Grey/White/Other custom colors

Power : 3N-380V-50Hz,220v/50hz/60hz

Airflow : 15000-23000 m3/h

Contact Now

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate

Products Introduction

Coolnet precision air conditioners are mainly designed to meet the special process and specific environment requirements of precision equipment. Its purpose is to precisely control its temperature, humidity, etc., and require it to be controlled within a certain range. And the coolnet precision air conditioner can control the temperature difference range to 0.1 degrees Celsius or even higher. This applies precisely to server rooms and data centers, which are housed in large numbers of thermally demanding equipment.

Benefits

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate

 Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate

Air Supply Method

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate

Technical Features

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate High reliability
High reliability is fully reflected in: EVO intelligent control system; high-efficiency variable frequency compressor; high-efficiency and high-reliability EC fan system; high-efficiency, high-pressure and large-area V-shaped evaporator; high-reliability variable frequency speed regulation owl type outdoor fan; high efficiency and low noise Centralized condenser outdoor unit, etc.

High energy saving
The high energy saving rate is fully reflected in: EVO intelligent control system;high-efficiency EC fan system; high-efficiency humidification system; high-efficiency variable frequency speed owl-type outdoor fan; small footprint; full frontal maintenance.

High efficiency
The large-area V/A type evaporator coil is used, and the structure is more compact. The copper tube with internal thread and the punched fin have higher heat transfer efficiency than the unit using the traditional coil. The large-area evaporator structure coil can make the cycle of the refrigeration system match the refrigeration load more fully, and the air flow through the surface of the coil is more stable, which minimizes the noise of the unit so as to ensure high air volume and high sensible heat ratio.

Technical Parameters

Model: CYA T26D/U T31D/U T35D/U T41D/U T45D/U T50D/U T55D/U T61D/U T70D/U T76D/U T85D/U T90D/U T100D/U
Power Supply 380V 3Ph-50HZ
Air Discharge Upflow/Downflow
Cooling Capacity :24℃/50%RH
Total Capacity (1) KW 26.9 31.9 35.9 41.9 45.3 50.5 55.4 61.4 70.5 76.2 85.5 90.8 102
Sensible KW 24.8 29.5 33.1 38.8 42.5 47.8 51.6 57.5 65.2 71.2 79.5 84.5 95.7
AEER W/W 3.6 3.6 3.6 3.6 3.6 3.7 3.7 3.6 3.6 3.6 3.6 3.6 3.6
Air Flow m3/h 8000 9500 10000 11500 13000 15500 16000 17500 18500 20500 22500 23500 24200
Compressor Hermetic scroll
Refrigerant R407C
Compressor quantity PC 2 2 2 2 2 2 2 2 2 2 2 2 2
Fan Section Centrifugal fan (Optional EC)
Fan quantity PC 2 2 2 2 2 2 2 2 2 3 3 3 3
Rated current A 4.3 4.3 4.3 4.4 4.4 4.4 5 5.2 5.2 6.5 16.5 16.5 16.5
Rated power W 1600 1600 1800 1800 2000 2000 3000 3300 3900 3900 5400 6300 6300
Total heating capacity KW 6 6 6 9 9 9 9 9 9 12 12 12 12
Material PTC
Humidifier Section Electrode type
Capacity Kg/h 5 5 5 5 13 13 13 13 13 13 13 13 13
Rated Current A 6 6 6 6 15 15 15 15 15 15 15 15 15
Condenser Model 2*58 2*58 2*58 2*58 2*80 2*80 2*100 2*100 2*120 2*150 2*150 2*165 2*180

Certificates

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate

Factory Details

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate

Packing & Delivery

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate

Case

Upflow 15000 M³/H Volume Computer Room Air Handlers With High Dust Interception Rate
